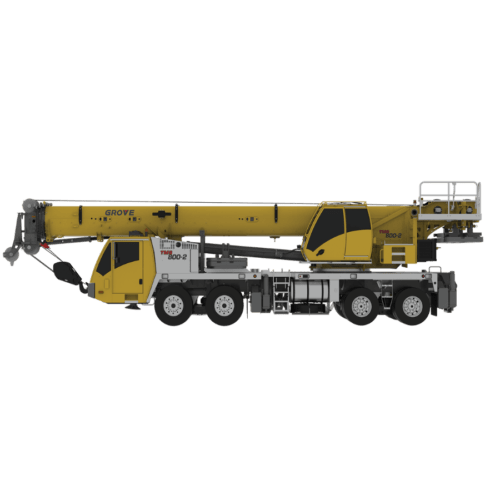

Grove TMS800-2 Truck Mounted Crane

New | Grove | Truck Mounted Cranes

Stock ID: TMS800-2

Grove TMS800-2 Truck Mounted Crane

Price on Request

  • Want to Buy? Request Purchase Info
  • Want to Rent? Request Options
  • Need More Info? View Product Guide
Stock ID TMS800-2
Capacity 80 US Tons
Boom Size 40' - 128'
Main Boom 137 ft.
Max Tip Height 194.3 ft.
Engine Make Cummins
Engine Model ISX12
Counter Weight 28000
Model# TMS800-2
ask and expert
Ask an Expert

Our expertly trained Sales Team is ready to help!

(800) 922-5508     Email

Share this equipment:

Description

Grove TMS800-2 Truck Mounted Crane | Walter Payton Power Equipment

The Grove TMS800-2 Truck Mounted Crane features the latest crane technologies and an 80 US ton capacity. With a new lightweight carrier design, this truck mounted crane roads up to 28,000 lbs of counterweight with no fall-off loads or wing weights. The TMS800-2 from Grove sets the new standard for truck mounted cranes with capacities up to 26% stronger than its closest competitor.

Grove TMS800-2 Features:

Boom

  • 40-128 ft (12.2 m – 39.0 m) four-section, MEGAFORM, Twin-Lock boom
  • Max tip height: 137 ft (41.8 m)
  • Optional 34.5 ft-57.6 ft (10.5 m – 17.6 m) telescoping swingaway lattice extension (manual or hydraulic)
  • Max tip height with jib: 194.3 ft (59.2 m)

Carrier

  • Engine: Cummins X12 6-cylinder turbocharged and after-cooled, 475 bhp
  • Eaton manual or automated transmission

Superstructure

  • Chassis-mounted outrigger controls with auto-leveling feature
  • Manitowoc CCS crane control system with two full graphic displays and jog dial
  • MAXbase asymmetrical outrigger position system

Counterweight

  • Standard and heavy lift counterweight packages both interchangeable with TMS9000E and TMS9000-2
  • Counterweights hydraulically controlled from cab or rigging remote

Dimensions

  • Overall length: 46.9 ft (14.3 m)
  • Overall width: 8.3 ft (2.5m)
